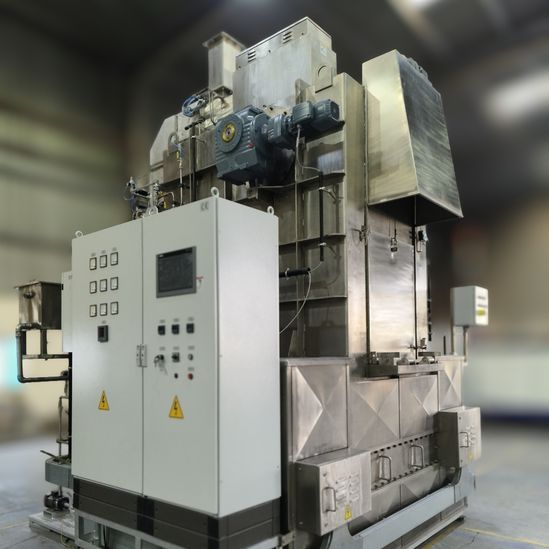

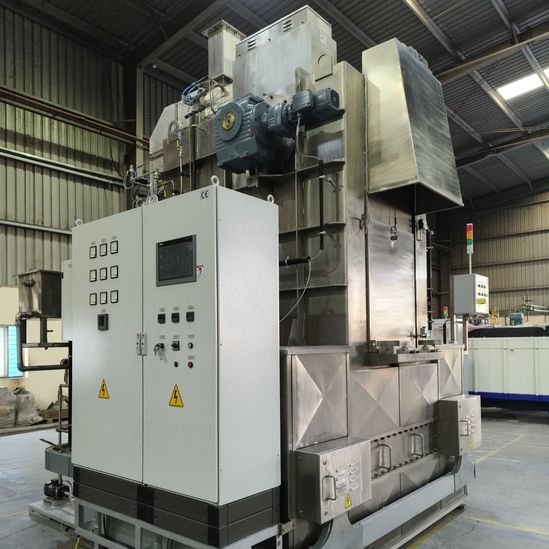

Aichelin Unitherm KEKTE design washing machine

Chamber Washing Machine - KEKTE Design

Aichelin Unitherm offers high-quality washing processes in water based alkaline solutions before and after heat treatment.

Product details

  • System typesImmersion, dunking, spraying and drying.
  • Operating modesBatch or continuous systems
  • Cleaning mediaWater-based cleaning agents (alkaline or neutral)
  • Additional processesRinsing, drying, corrosion protection
Request technical consultationDownload product brochure | PDF
Cleaning systems
Clean surfaces for reproducible heat treatment

Aichelin Unitherm cleaning systems are used to clean components before and after heat treatment and make a decisive contribution to process reliability and component quality.

Effective cleaning ensures that the furnace atmosphere is not affected by contaminants and that material exchange at the component surface can take place without interference. At the same time, residues such as oils, emulsions, chips, or particles are reliably removed.

Additional technical features

  • With immersion, dunking, spraying and drying.

  • Spraying system with rotating jet arms.

  • Option of one / two washing liquid containers with mild steel / stainless steel construction.

  • Drying device by hot air (optional)

  • Coalescence oil separation by disk-phase separator working on the principle of gravity and coalescence.

  • Fresh water automatic top-up to spray and rinse tank. OPTIONS AVAILABLE

Gallery
Our Service & Support
Reliable service throughout your entire furnace and equipments lifecycle

We support our customers throughout the entire lifecycle of their systems – from commissioning and operation to modernization and digital integration.

Learn more
Questions & Answers
FAQ – Aichelin Unitherm Cleaning Systems
Aichelin Unitherm cleaning systems are used to clean components before and after heat treatment, ensuring the quality of subsequent processes through reliably clean surfaces.
They prevent contamination from affecting the furnace atmosphere and ensure uninterrupted material exchange at the component surface.
Aichelin Unitherm cleaning systems are available as immersion spray cleaning systems and vacuum cleaning systems, covering a wide range of cleanliness requirements.
They reliably remove oils, emulsions, particles, chips, and other production residues – even on complex component geometries.
Water-based cleaning agents (alkaline or neutral) are typically used, depending on the application and contamination level.
They can be designed as batch or continuous systems and can be flexibly integrated into existing production lines.
They offer high cleaning quality, energy- and resource-efficient operation, and reduced media consumption and operating costs.
