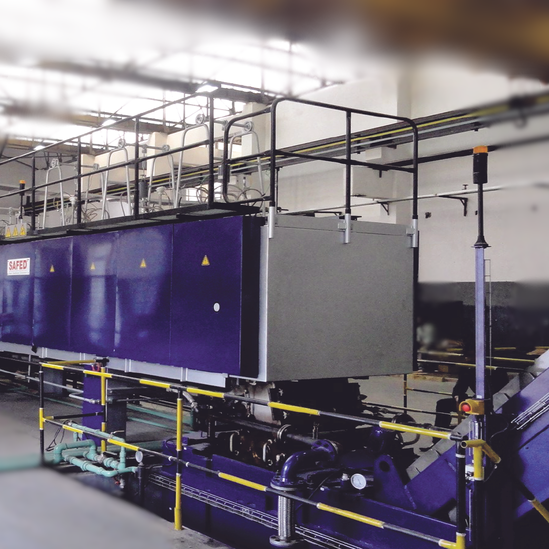

Mesh Belt Furnace T-Series with Muffle from Aichelin Unitherm

Mesh Belt Furnace T-Series with Muffle

Aichelin Unitherm Mesh belt T-Series furnace with muffle is designed for controlled, continuous heat treatment of small to medium-sized components in high-volume production environments.

Product details

  • HeatingElectric / Gas heated options available.
  • ThroughputCapacity varying from 30 to 500 kg/hr.
  • Process controlPLC with integrated temperature and advance process control system.
  • Quenching technologyIntegral quench tank.
Request technical consultationDownload product brochure | PDF
Continuous Mesh Belt Furnace T-Series with Muffle
Continuous heat treatment for consistency, efficiency and high-volume.

The Mesh Belt Furnace T-Series with Muffle from Aichelin Unitherm is designed for controlled, continuous heat treatment of small to medium-sized components in high-volume production environments. Built with a sealed muffle and integrated quenching system, it ensures precise atmosphere control for processes like carburising, carbonitriding, austempering and through hardening.

With flexible heating options, advanced process control, and compatibility with protective gas systems, the T-Series delivers uniform results, reduced oxidation and optimal metallurgical quality across a wide range of industrial applications.

Additional technical features

  • Mesh Belt Furnace with muffle.

  • Furnaces for continuous heat treatment using mesh belt and integral quench tank.

  • Complemented with protective-gas generators and advance process control system.

  • For treating parts in bulk or positioned on the belt, normally weighing up to approx. 0.45 kg, depending on their geometry and the desired result up to 0.5 mm CHD.

  • Suitable for medium / high volume production.

  • The range of available furnaces covers output from 30 to 500 kg/hr. depending on the type of part and the required heat treatment.

  • Special ECO Box at entrance for lower oxygen.

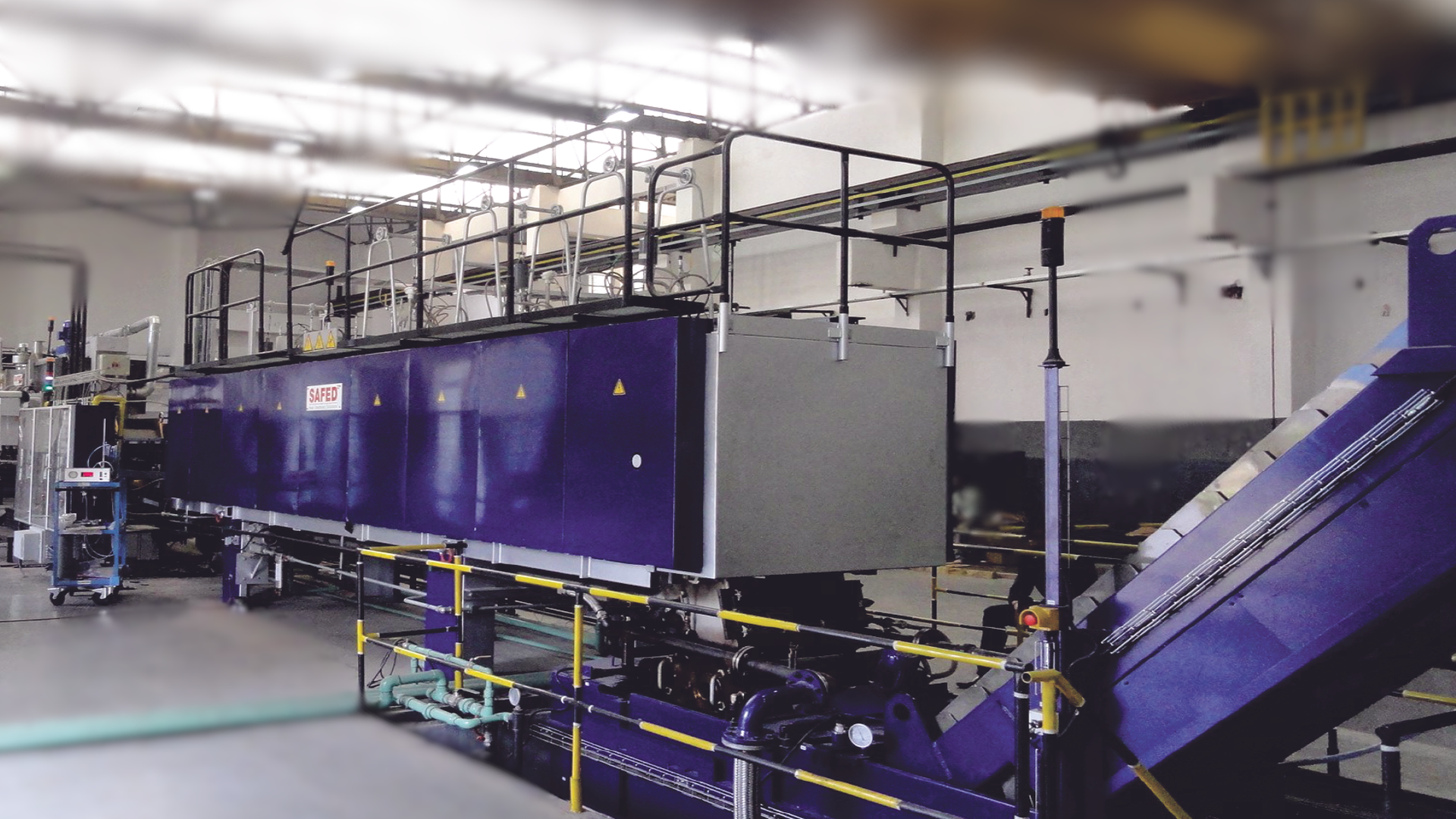

Mesh Belt Furnace T-Series with Muffle from Aichelin Unitherm
Our Service & Support
Reliable service throughout your entire furnace lifecycle

We support our customers throughout the entire lifecycle of their furnaces – from commissioning to ongoing operation, modernization and digital integration.

Learn more
Questions & Answers
FAQ – Aichelin Unitherm Mesh Belt Furnace T-Series with Muffle
It supports austenitizing, martempering, austempering, carburising, carbonitriding, and through hardening with consistent process control.
It is ideal for medium to high-volume continuous production, especially for small components in bulk.
The muffle ensures a controlled atmosphere, minimizing oxidation and improving surface quality of treated components.
The furnace range supports throughput from approximately 30 to 500 kg/hr depending on part geometry and process requirements.
Yes, it is designed to work with protective gas generators for precise atmosphere control and repeatable results.
The mesh belt system provides continuous movement with controlled temperature zones, ensuring consistent and repeatable results.
