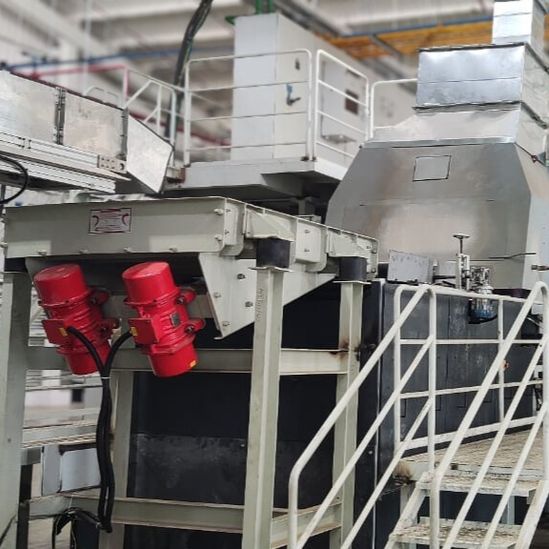

TC-Series Mesh Belt Furnace without muffle

Mesh Belt Furnace TC-Series without Muffle

Aichelin Unitherm TC-Series mesh belt furnace without muffle is designed for high-efficiency continuous heat treatment of small to medium-sized components in high-volume production environments.

Product details

  • HeatingElectric / Gas heated options available.
  • ThroughputCapacity varying from 500 to 2000 kg/hr.
  • ProcessAustenitizing, Martempering in oil, Austempering in salt, Carburising, Carbonitriding, and Through hardening.
  • Quenching technologyIntegral quench tank.
Request technical consultationDownload product brochure | PDF
Continuous Mesh Belt Furnace TC-Series without muffle
Continuous heat treatment for consistency, efficiency and high-volume.

The TC-Series Mesh Belt Furnace without muffle is designed for high-efficiency continuous heat treatment of small to medium-sized components. Built with a robust conveyor-based system and integrated quenching, it ensures consistent metallurgical results, optimal atmosphere control and scalable production capacity. Its muffle-less design reduces maintenance while enabling direct heat transfer and uniform processing, making it ideal for demanding, high-volume industrial applications.

Additional technical features

  • Mesh Belt Furnace without muffle.

  • Furnaces for continuous heat treatment using conveyor and integral quench tank.

  • Complemented with protective-gas generators and advance process control system.

  • For treating parts in bulk or positioned on the belt, normally weighing up to approx. 0.45 kg, depending on their geometry and the desired result up to 0.5 mm CHD.

  • Suitable for medium / high volume production.

  • The range of available furnaces covers output from 500 to 2000 kg/hr. depending on the type of part and the required treatment.

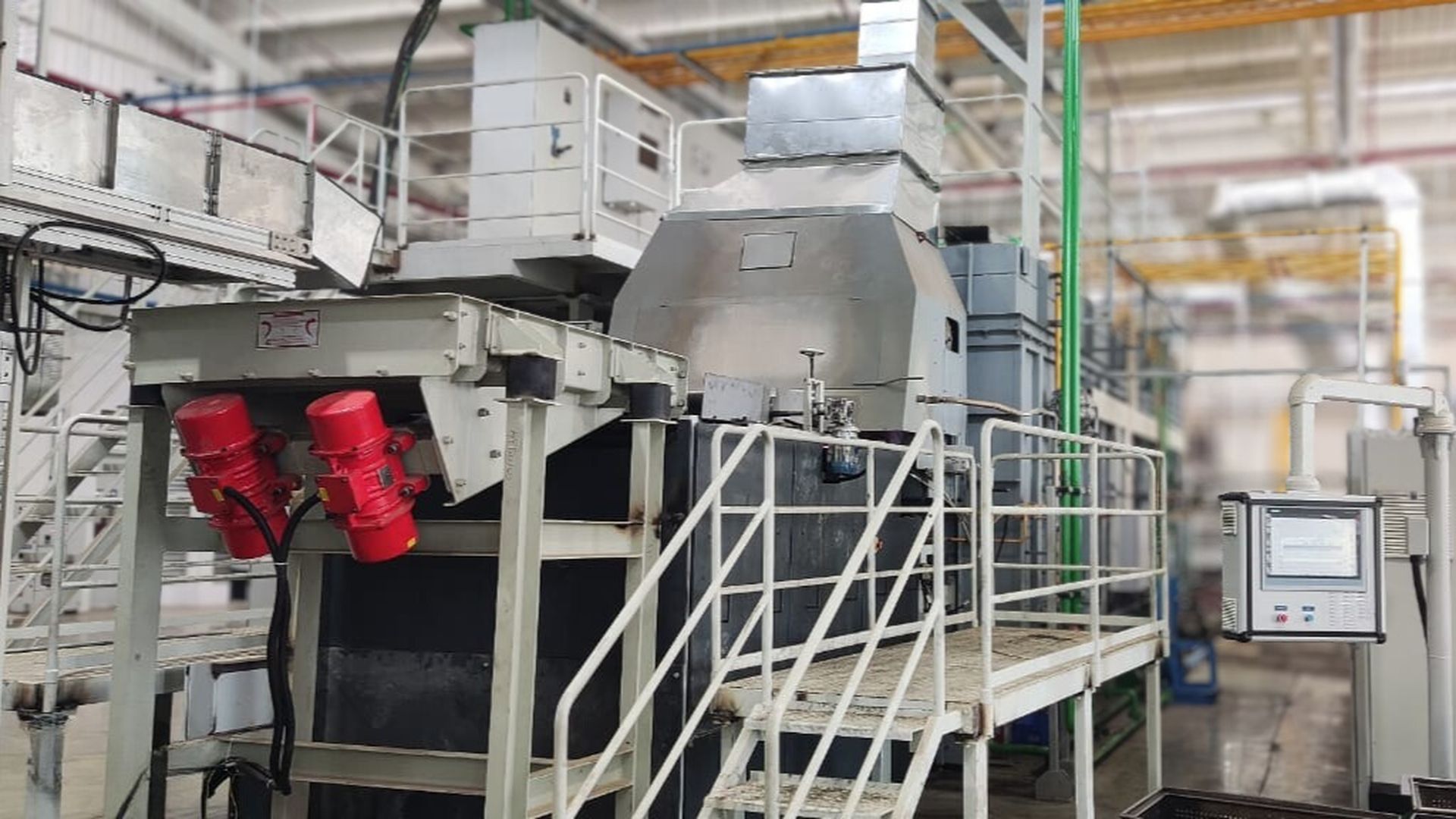

TC-Series Mesh Belt Furnace without muffle
Our Service & Support
Reliable service throughout your entire furnace lifecycle

We support our customers throughout the entire lifecycle of their furnaces – from commissioning to ongoing operation, modernization and digital integration.

Learn more
Questions & Answers
FAQ – Aichelin Unitherm Mesh Belt Furnace TC-series without muffle
The furnace is designed for a wide range of continuous heat treatment applications including austenitizing, martempering in oil, austempering in salt, carburising, carbonitriding, and through hardening. It delivers consistent metallurgical results for high-volume production requirements.
The muffle-less construction enables direct heat transfer, resulting in improved thermal efficiency and faster heat response. It also reduces maintenance requirements and operating costs by eliminating muffle-related wear and replacement.
Depending on the component type, loading arrangement, and heat treatment cycle, the furnace can handle outputs ranging from approximately 500 to 2000 kg/hr. This makes it suitable for medium to large-scale manufacturing operations.
Yes, the Aichelin Unitherm TC-Series furnace is designed for seamless integration with automated loading systems, quench tanks, washing machines, tempering furnaces, and material handling systems. This enables continuous and efficient production flow.
The furnace is generally designed for components weighing up to approximately 0.45 kg, depending on their geometry and the required treatment process. Part dimensions and loading conditions are optimized for uniform heating and quenching.
The TC-Series can achieve case hardening depths up to approximately 0.5 mm CHD, depending on material grade, process parameters, and cycle time. Advanced atmosphere control ensures consistent and reliable case properties across the batch.
