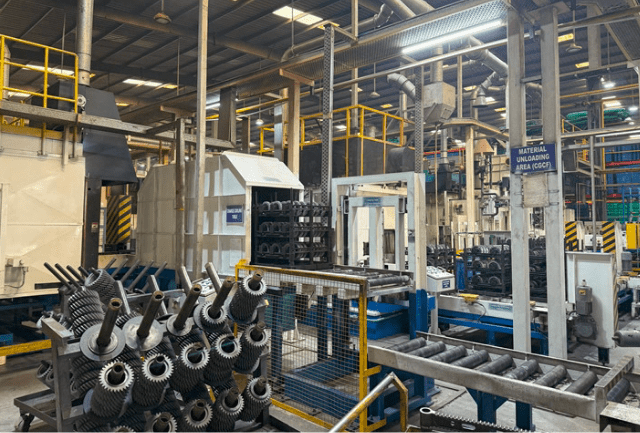

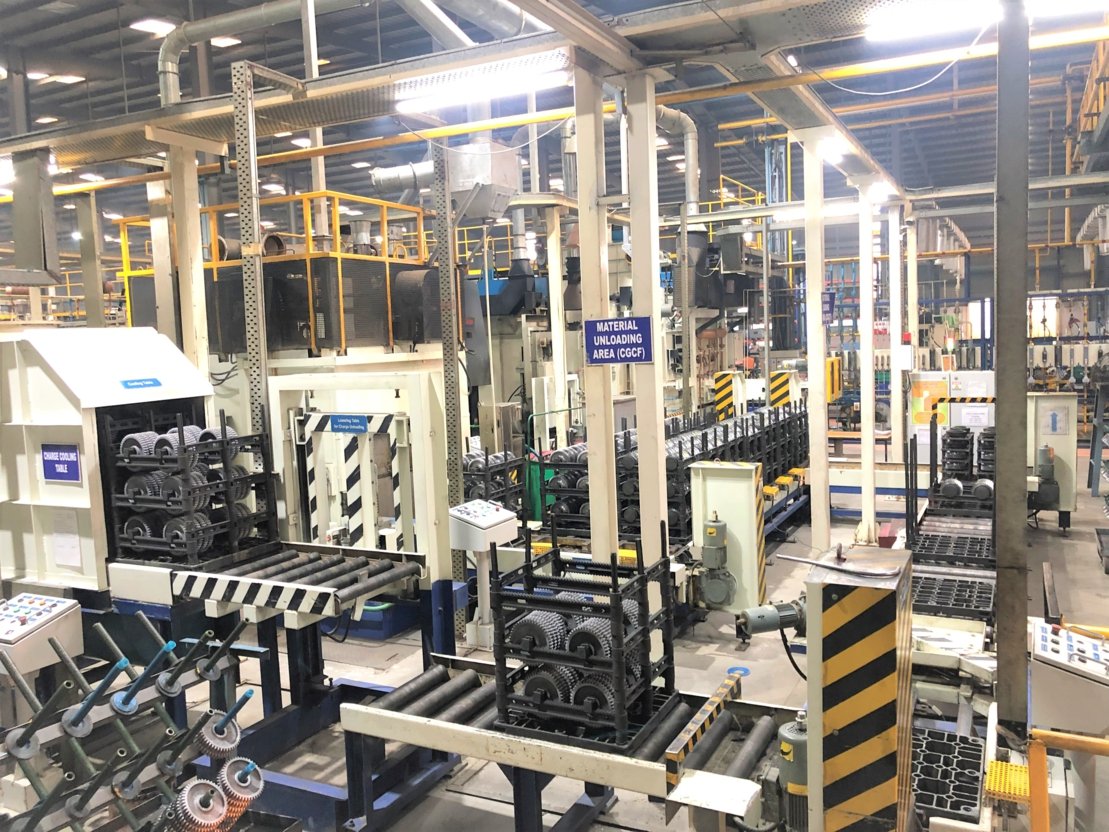

Pusher Type Furnace

For case hardening, through hardening, carbonitriding, normalizing and annealing.

MAIN CHARACTERISTICS:

• Electric/Gas heated options available.
• Oil/Salt/Press Quenching.
• High capacities with reproducible quality.
• Low heat treatment costs per kg.
• Flexibility with single / twin track carburizing furnace for different cycle times and different CHD parts.
• Low energy and media consumption with recuperative gas burners.
• Worldwide references (More than 600 installations in Europe, China, India).
• Capacity varying from 400 kg/hr. to 2000 kg/hr.

SPECIAL FEATURES:

• Loading into Carburizing furnace via bottom loader. This eliminates requirement of gas curtain and lowers running cost.
• Free Oil Quench Tank with two dedicated elevators for Quenching and Unloading from Quench Tank.
• Two separate free Oil Quench Tanks option available.
• Pre and post wash with FLEXICLEAN (Vacuum Washing Machine) option available .
• Holding Chamber with Bottom Lifter with Servo Drive for high precision and accuracy for 6 - 8 layers per batch.
• Press Quenching done by FANUC Robots.
• Furnace with high-pressure gas quenching with N2 option available for lower distortion.

Processes in Furnace :

• Hardening
• Carburizing
• Carbonitriding
• Tempering
• Stress Relieving

Parts that can be Processed :

• Gear parts
• Bearings
• Standard parts
• Machine industry
• Cold-formed parts
• Capacity varying from 100 Kg/Hr to 2000 Kg/Hr
